Audytor CC

The latest version of Auditor SET introduced new features and a number of improvements to speed up the installation design process.

The main changes are:

• New concept of work with SET program.
• New Fast Calculation (FC) module, which allows you to perform fast, approximate calculations of the thermal load of rooms and preliminary calculations of installations.
• Improvements in the design process of surface installations.

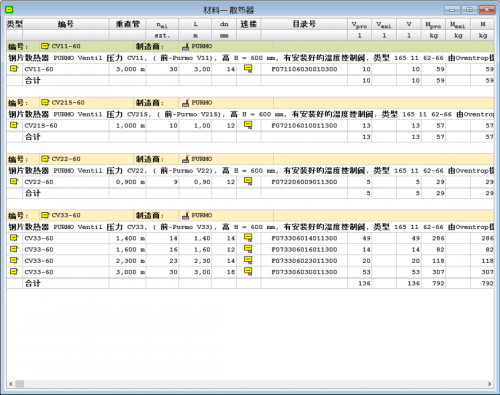

• Changed layout of the bill of materials.
• Changed module for viewing catalog data and selecting devices from catalogs.

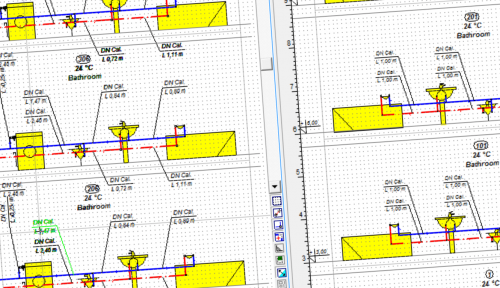

• Improvements related to drawing wires.
• Improvements in graphics.

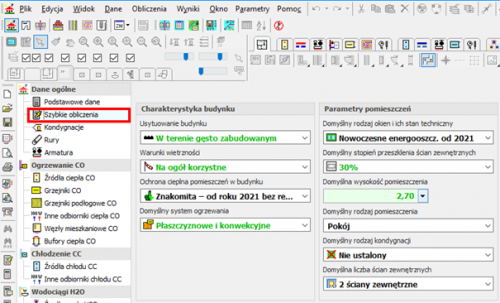

The new Fast Calculation (FC) module in the SET Auditor provides the opportunity for simplified installation design. It also makes it possible to speed up the creation of professional designs

In professional design mode, elements of simplified design can be used to streamline the design process (fast estimation of heat loss in the absence of results from the OZC program, selection of space heating concepts, etc.).

Both the simplified design and the detailed professional design are saved in the same file, which facilitates further work with the project.

MORE

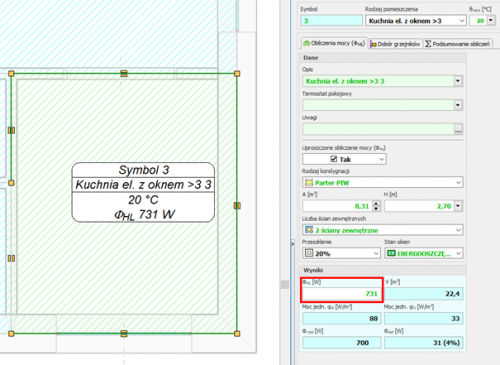

This function enables calculation of the value of room thermal load in a simplified manner based on a few basic parameters.

Thanks to this function, the designer can select the appropriate method of heating the room and get an idea of the type of heating equipment to be used in the room.

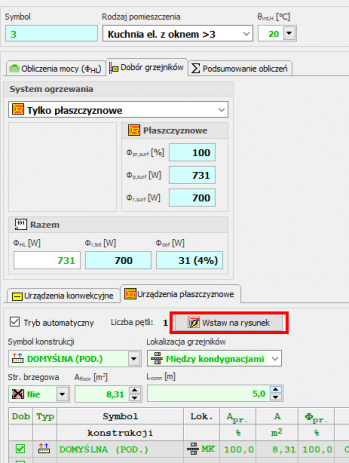

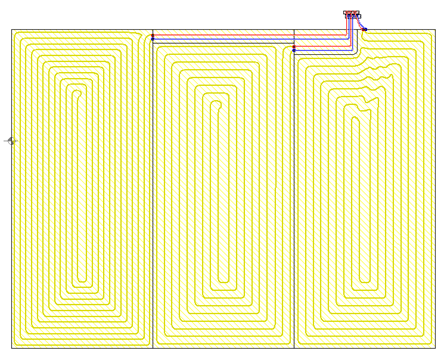

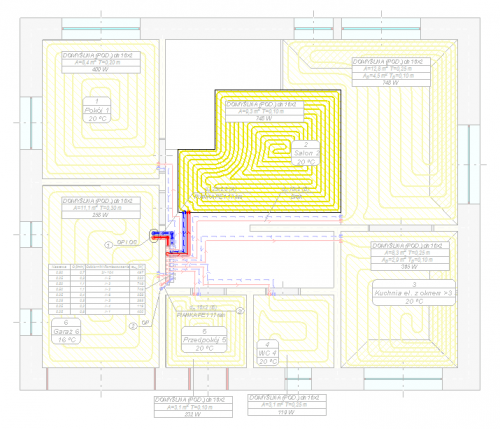

The surface layout suggested by the program can be inserted into the floor plan drawing.

When performing fast calculations, the program selects radiator power and duct diameters even if the heat source is not entered. From the default values declared in the general data, it inherits the parameters separately for the installation with radiators, separately for underfloor heating and places a virtual source in the resulting drawing.

The graphic design has been changed in the program - both in terms of the graphic style and window organization. Thanks to this, they have become even more transparent

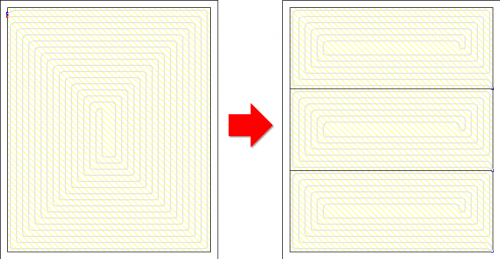

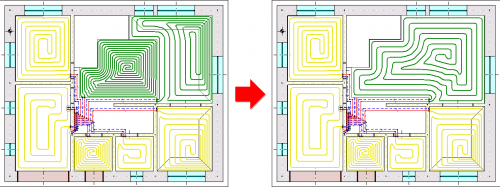

Tools for quickly dividing and connecting polygons that define hotplates. One field can be divided into two or three equal fields - horizontally or vertically, respectively. The user can also indicate a dividing line using a broken line. At the same time, the option of combining several cooking zones into one has been introduced.

These functions are especially useful when designing underfloor heating, but can be used for sharing
and joining other polygons (e.g. room zones).

Extended range of mixing group schemes with the possibility of local mixing at the manifold.

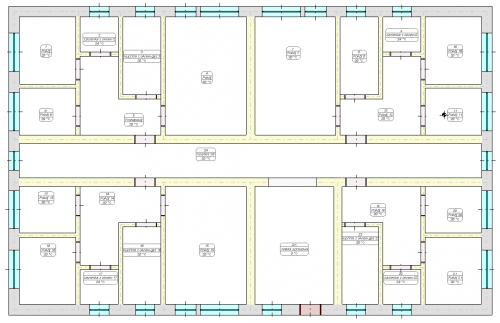

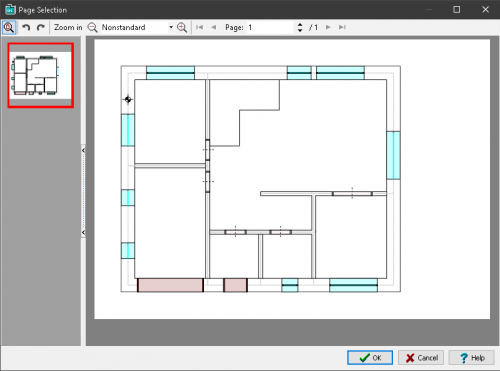

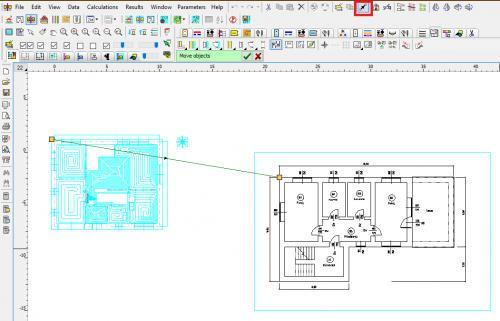

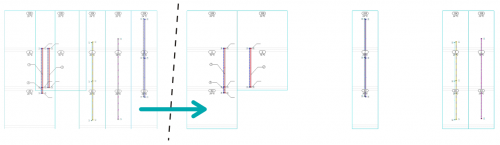

The ability to easily use one DWG file containing architectural plans of many floors.

The user can indicate which parts of the DWG file are to be used on each floor and then adjust their position using precision panning tools.

When selecting objects using the window, the selection window is filled with blue, which improves its readability.

Readability of selected objects has also been increased by displaying them with all details in green.

The functions Leave selected lines and Leave unselected lines allow you to narrow the range of selected objects. After selecting a number of elements in the drawing window, you can then remove from the selection the items indicated in the table or just leave those items.

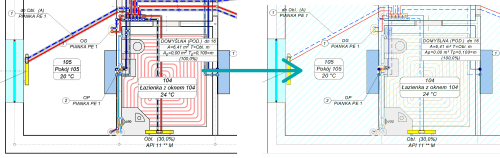

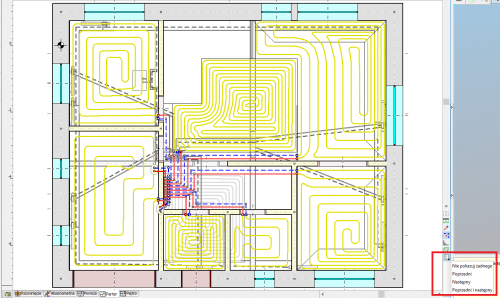

When you turn on critical flow display, the other elements of the drawings are displayed less intensively. This makes it even easier to orient yourself in the course of critical circulation.

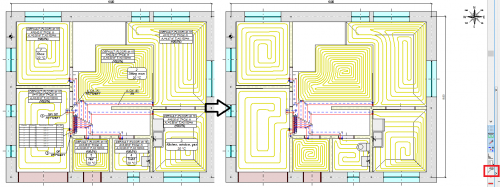

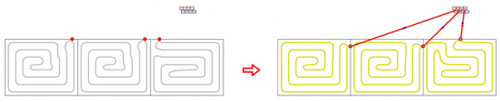

The option of temporarily turning off the display of labels during design, improves the readability of drawings on the screen in situations where labels are not necessary.

The ability to export to Microsoft Excel not only individual tables, but also all tables and diagnostics at once. This significantly reduces exporting time if you need to save a number of tables.

The program has been equipped with the latest cooperation module with DWG and DXF files.

It allows among others:

• Loading DXF and DWG drawings in the newest versions.
• UNICODE text support for most characters to be displayed correctly.

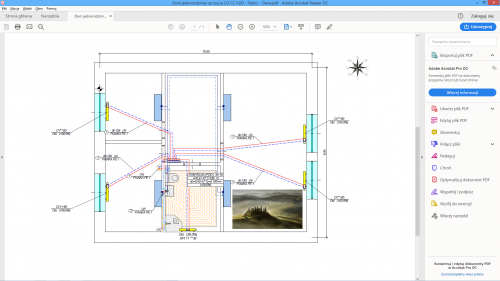

• Export of drawings in the following formats: DWG, DXF, PDF, SVG, CGM, HPHL, SWF.
• Significantly faster display of complex drawings thanks to the simplified paint function.
• A more realistic export of drawings to DXF and DWG files.
• Saving raster drawings in DXF and DWG files.
• More convenient management of drawing layers

The function allows to create layout of corresponding to the levels on which rooms have been defined in Autodesk® Revit®. The transfer of data takes place via a file generated in Autodesk® Revit® using the Audytor gbXML plugin.

Read more

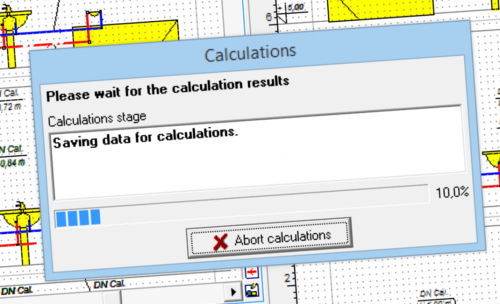

The Audytor CC program allows you to perform full hydraulic calculations of the installation, including:

• calculation of the nominal water flows in the pipes
• selects pipes’ diameters
• determines the hydraulic resistance of individual system components
• determines the required available pressure
• regulates the water flows in the network by selecting the appropriate regulatory elements (valves with pre-settings, orifices)

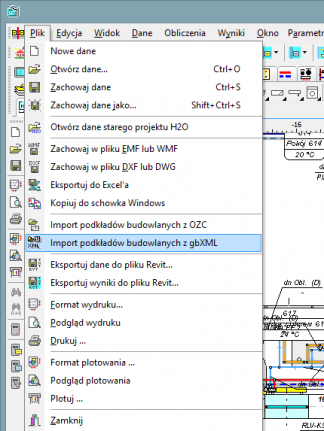

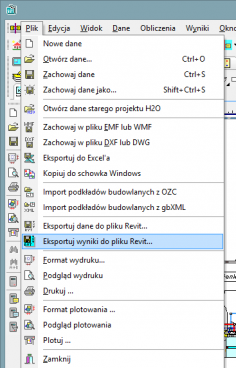

• Possibility to import building bases from Autodesk® Revit® via a gbXML file,
• Possibility to export data about the designed installation to Autodesk® Revit®..

A drawing with marked room zones is necessary to create a project. They can be drawn manually in the program or loaded together with bases from the HL program. If a three-dimensional model of a building has been created in the HL program, the drawings with the results will be loaded into the program. The building entered in tabular form will be loaded as a list of rooms with the results.

The most comfortable mode of operation allows you to take full advantage of the possibilities of cooperation with the HL program:

1. Uploading building bases to the HL program from files such as DWG, DXF, WMF, JPG.
2. Drawing a building model in the HL program and making thermal calculations.
3. Loading the results from the HL program in the system design program (heat load values and floor plans)
4. Drawing the installation and making calculations.

Designing an installation can be carried out only on a diagram, only on plan views, or partially on plan views and partially on a diagrams. It is also possible to combine fragments of installations drawn on plan views with elements drawn on diagrams.

In the case of drawing onplan views, the program automatically creates a simple diagram of risers, "fastening" individual projections. The program Audytor SET has been equipped with a three-dimensional visualization module of the installation, analogous to the building visualization module, available in the Audytor HL program.

• Import and export of drawings in DWG format
• The function of organizing the zones of risers in the development

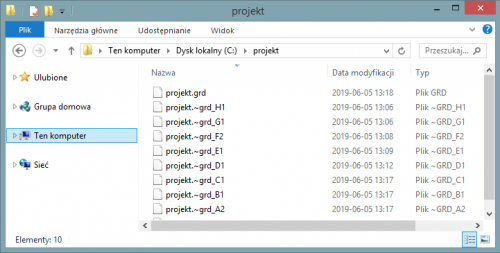

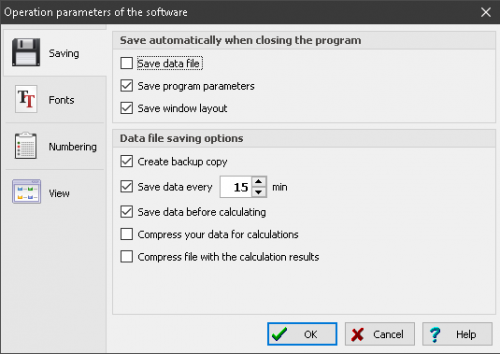

• Data file backup system
• A mechanism that automatically generates an axonometric scheme of the designed installation
• Ability to display installation pipes with actual diameters
• Mechanism of intelligent duplication of installation elements
• The function of arranging labels on several storeys at the same time (in plan views and axonometry drawings) and a mechanism for duplicating labels on adjacent storeys
• Improving the drawing of sewage installations.
• A system of keyboard shortcuts to assign simple button combinations to the most used drawing tools.

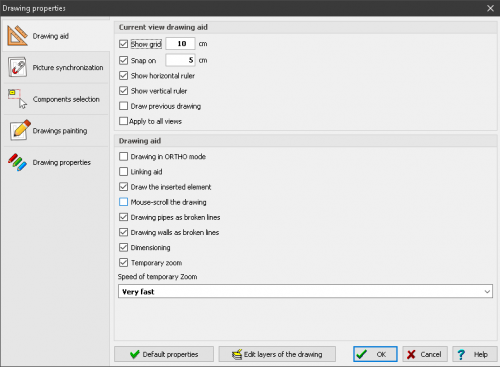

• Improvements in editing drawing layer properties.
• Improvements in displaying information about the circulation by a given heater / receiver.

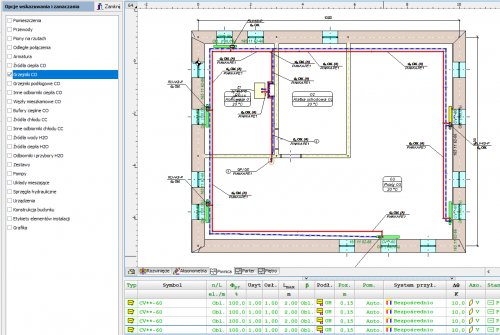

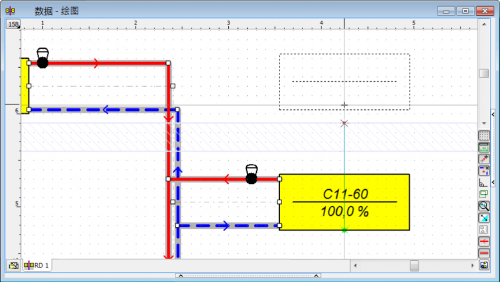

Data can be entered to the program graphically on plan views or diagrams. The necessary information about the drawn elements are introduced into the tables associated with the plan views or diagrams. As a result of table approach, it is possible to edit quickly data related to single pipes, radiators, fittings, as well as whole selected groups of elements. Each component of the system is equipped with the validation and support system that allows to obtain information about the quantity being inputted or the relevant catalogue data.

In order to facilitate data entry, the software includes:

• The ability to edit simultaneously many system components.
• The possibility of using ready-made blocks.
• Intelligent functions duplicating any parts of a drawing horizontally and vertically, together with the appropriate renumbering of elements.
• Possibility to define an unlimited number of custom blocks consisting of any parts of the drawing.
• Quick access to auxiliary information on the quantities being inputted.
• The pop-up buttons facilitating access to frequently used components.
• Function dynamically linking data from a drawing with the data in the table.
• Functions connecting automatically fittings, radiators and other system components by pipes.
• Automatic creation of the risers on the basis of plan views.
• Editing data in tabular form giving the possibility of setting of parameters of multiple selected items at the same time.
• Dynamic linkage between the drawing data table highlights in the drawing, the element being edited in the table.

• Each inputted component is equipped with the validation and support system that allows to obtain information about the values or evokes the relevant catalogue, as well as test of data.

• While entering data the program checks its correctness on an ongoing basis. This allows a significant reduction in the number of errors. During the calculation process, complete data validation takes place. As the result of that the list of errors, warnings and hints is created. The list includes the information about the significance levels and the place of the problems.

• After the calculations, program analyses the obtained results. The analogue list of messages is created. Extensive system diagnostics enables the designer to fully assess the quality of the design. The program is equipped with a mechanism for quick search of where the error occurred (automatic finding a table, a row and a column with wrong data and faulty component is indicated in the drawing).

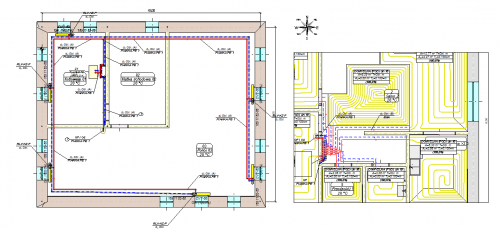

The program enables creation of the complete graphic documentation of the system design, thanks to the possibility of displaying the calculations results on the storey plan views. It is often required to enter the picture of the project under design. Pictures can be entered by reading pictures from a file, scanning or pasting from clipboard. After being entered, pictures frequently require levelling, calibrating, cropping and additional correction.

Technical drawings (eg. underlays) are now as a default created using computers. They are then available in the electronic format as files. Vector formats (eg. DWG, DXF, WMF, EMF) are the most suitable for technical drawings. Picture files can also be created as scans, then they are almost always available in the raster format (BMP, JPG, JPEG, TIF, TIFF, GIF, ICO, PNG).

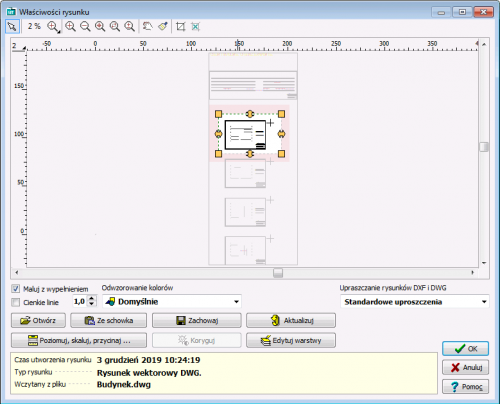

Usually, while loading the picture, it will be necessary to complete information from the dialogue Picture units. After the picture has been inserted into the program it is usually necessary to perform its levelling and cropping, also the calibration might prove necessary to adjust the picture to its electronic equivalent. It is possible to choose the resolution and quality of the scan and to save scanned documents in a selected graphical format. The program is equipped with scanners compatible with the TWAIN specification.

HL programs and CH are equipped with the function of Graphic creation of a building model. This function gives you the opportunity to draw a building model. To simplify the action of drawing, you can load a drawing base into the program. The file being loaded can come from an external program for creating technical drawings (eg DWG), or from a scanned drawing (eg JPG). The scanned drawing can be divided into several files. Drawings scanned into several files usually do not keep the scale precisely enough. They can also be rotated relative to each other by a small number of degrees.

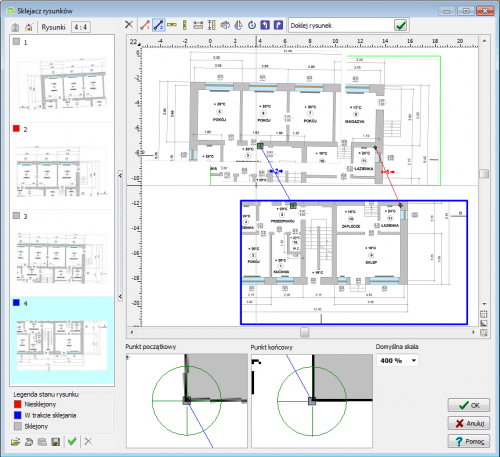

Drawing bonding allows you to quickly scale multiple scanned drawings (in different sizes and rotated) and bond them with one another.

The program (since version 7.0) has been created as a module of the Audytor SET program and enables the simultaneous design of cooling, cold and hot water systems together with circulation and central heating installations. Individual modules of the program cooperate with each other and use a common 2D and 3D graphic environment.

软件中包括了设备的目录，技术文件和图片

Extensive range of equipment

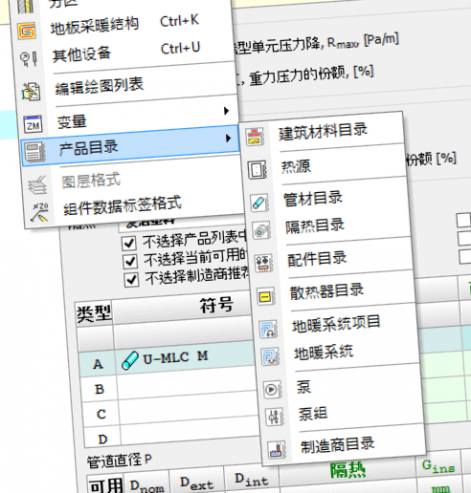

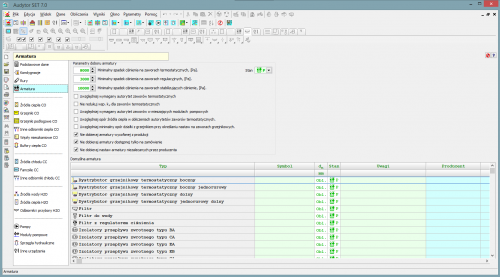

The software includes catalogues of equipment together with their technical documentation and pictures.

扩展误差诊断以及供暖系统和电路的三维可视化可以帮助设计师更容易的在项目中识别错误和优化系统

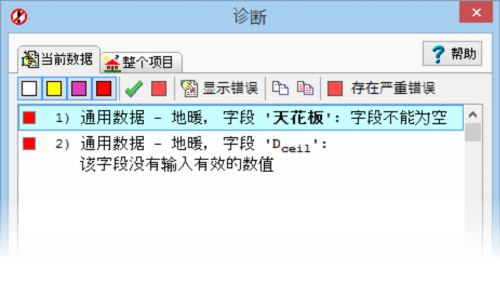

Diagnostics of errors

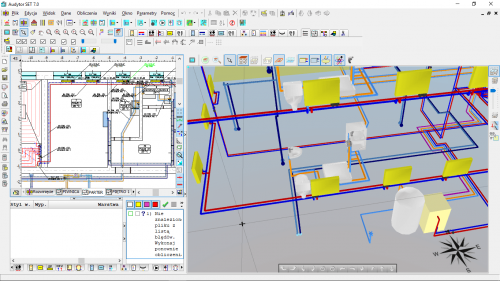

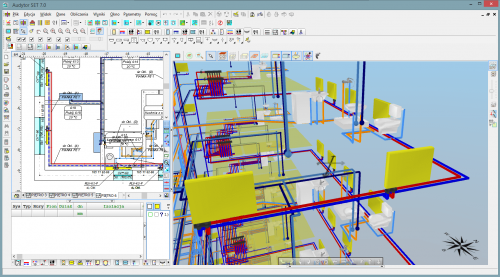

Extended diagnostics, as well as 3D visualisation of heating systems and critical circuits assist designers in easy identification of errors and optimization of systems in their projects.

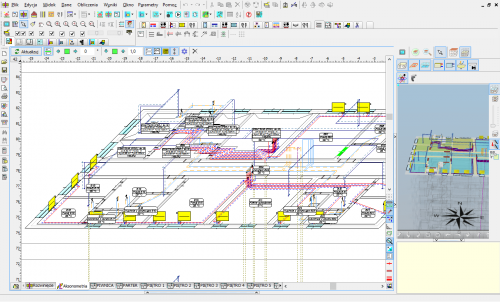

The program since version 7.1 has a mechanism that automatically generates the axonometric scheme of the designed installation.

Axonometry drawing can be printed or exported to DWG format, which allows to create a complete project documentation.

The axonometry schema also allows displaying the scheme of the entire installation in one drawing allowing for a more precise orientation in the project and selecting and simultaneously editing the element data on different floors, which significantly speeds up the procedure of design modification and installation adjustment.

Each inputted component is equipped with the validation and support system that allows to obtain information about the values or evokes the relevant catalogue, as well as test of data.

While entering data the program checks its correctness on an ongoing basis. This allows a significant reduction in the number of errors. During the calculation process, complete data validation takes place. As the result of that the list of errors, warnings and hints is created. The list includes the information about the significance levels and the place of the problems.

After the calculations, program analyses the obtained results. The analogue list of messages is created. Extensive system diagnostics enables the designer to fully assess the quality of the design. The program is equipped with a mechanism for quick search of where the error occurred (automatic finding a table, a row and a column with wrong data and faulty component is indicated in the drawing).

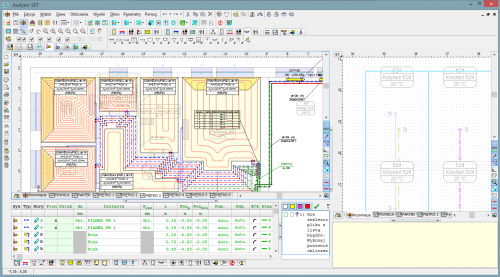

The results of calculation are presented in both graphical and tabular form. Format individual system component labels can be freely modified (the selection of displayed values and style of labels).

The format of tables can be changed (selection of displayed columns and rows, font sizes) and sorted according to any key.
The tables contain the overall results and detailed results for individual devices, circuits and lists of materials and fittings.
In the drawings with results, there are labels containing the data specific for the indicated device. The form of labels is fully editable. All results available for the specific element can be put on the label. Many formats of labels can be saved and later on changed immediately.

The calculation results can be printed on a plotter or a printer. The user can select the scale of drawing and use the print preview to determine how drawings will be printed.

If the drawing does not fit one sheet of paper, the program prints it in fragments, which then can be taped together. As a result, using even the simplest A4 printer, large drawings may be prepared. The program is also capable of storing drawings in DXF or DWG files. The saved drawings can then be loaded into other software, e.g. AutoCAD.

Tables with calculation results can be printed, or exported to other applications running in Windows environment (e.g. a spreadsheet, a word processor etc.).

在一个项目中设计多个系统的能力能确保在同一时间为建筑物设计整个系统。

Designing a several installations in one project

The ability to design several systems in one project in order to design the entire system for the building at the same time.

设计师可以使用标签编辑器为准备项目的技术文件对使用的材料和供暖系统组件进行概述

Creating technical documentation

Designers can use the editor of labels, creating overview of materials and components of heating systems in order to prepare technical documentation of projects. Diagrams of heating systems can be divided into any number of drawings. Drawings themselves can be exported into the DWG format.

该软件可以在windows(10, 11)以上的32或则64位系统上运行。

最低硬件要求：

• 1200 MHz处理器
• 1 GB RAM
• 最小屏幕分辨率为1024x768的彩色显示器
• 硬盘驱动器上的可用空间大于500MB
• 兼容的显卡采用OpenGL 2.0及更高版本 , 市场上的所有新显卡都可以满足最低硬件要求；集成显卡和主板：最低GMA500

Vertical resolution requirements for the screen:
- minimum - 768 points,
- sufficient for comfortable work - 900 points,
- the most convenient - 1080 points.

Requirements for system font settings:
- Windows Vista, 7, 8 - fonts "100% smaller",
- Windows XP - "normal" fonts.

The computer should have a graphics card that supports OpenGL technology in the version:
- minimum 2.0,
- sufficient for comfortable work: 3.3 and higher.
